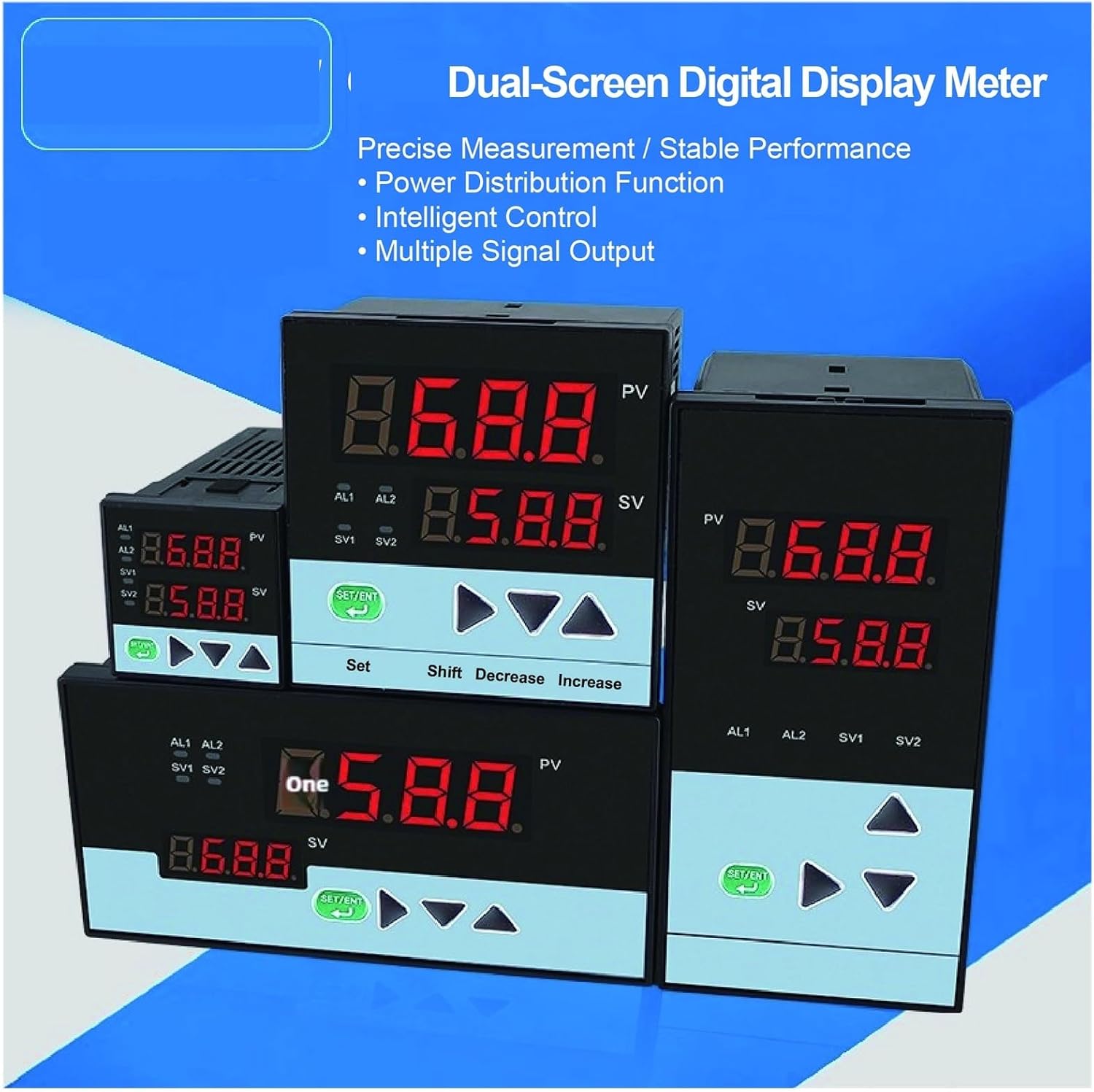

Dual Display Digital Controller for Temperature Pressure and Level with Peak Alarm Relay 4-20mA RS485 Output

1.NOTE:Default Parameters:.Default dimensions: 48×48, 48×96, 96×48, 72×72, 96×96, 80×160, 160×80..Default power supply: AC220V..One universal signal input..Dual-screen display: PV (current measurement), SV (peak value, alarm 1, alarm 2, alternating display)..Two relay outputs.Due to page limitations, some configurations may not be listed. Please contact usfor special requests.Customizable Parameters:.Optional power supply: DC12V, DC24V, AC/DC90-250V..Optional output signals: 4-20mA, RS485, 0-5V, 0-10V.2. ParametersParameterSpecificationDimensions48×48, 48×96, 96×48, 72×72, 96×96, 80×160, 160×80 mmPower SupplyAC 220V (default), DC12V, DC24V, AC/DC90-250V.Signal InputUniversal inputDisplayDual-screen (PV: current value, SV: peak, alarms)Relay Output2 relay outputsOutput Options4-20mA, RS485, 0-5V, 0-10V (customizable)Measurement Accuracy±0.5%FS (25) 150ppmMeasurement Speed3 times/secondTransmitter Power SupplyDC 22V~28V (Max. short circuit current 35mA)Relay Contact CapacityAC 220V / 3ARelay Contact Life100,000 cyclesOperating Temperature0~50Relative Humidity85%RHPower Consumption5W3. FeaturesDual-Screen Display: Shows current measurement, peak value, and alarms in rotation.Multiple Signal Outputs: Supports 4-20mA, RS485, 0-5V, 0-10V for versatile applications.Fast Measurement Speed: Reads data at 3 times per second for real-time monitoring. Precision: Ensures accurate measurement with an error margin of ±0.5%FS.Customizable Power Supply: Supports AC 220V by default, with optional AC 110V.Industrial-Grade Durability: Designed for long-term operation with relay lifespan up to 100,000 cycles.4.ApplicationsIndustrial automation and control systemsTemperature, pressure, and humidity monitoringElectrical and mechanical equipment monitoringProcess control in manufacturing industriesDimensions : 48-48, 48-96, 96-48, 72-72, 96-96, 80-160, 160-80 mmPower Supply : AC 220V (default), DC12V, DC24V, AC/DC90-250V.Signal Input : Universal inputDisplay : Dual-screen (PV: current value, SV: peak, alarms)Relay Output : 2 relay outputsOutput Options : 4-20mA, RS485, 0-5V, 0-10V (customizable)Relay Contact Capacity : AC 220V / 3A
